2‑Way Bookshelf Speaker with JET Tweeter

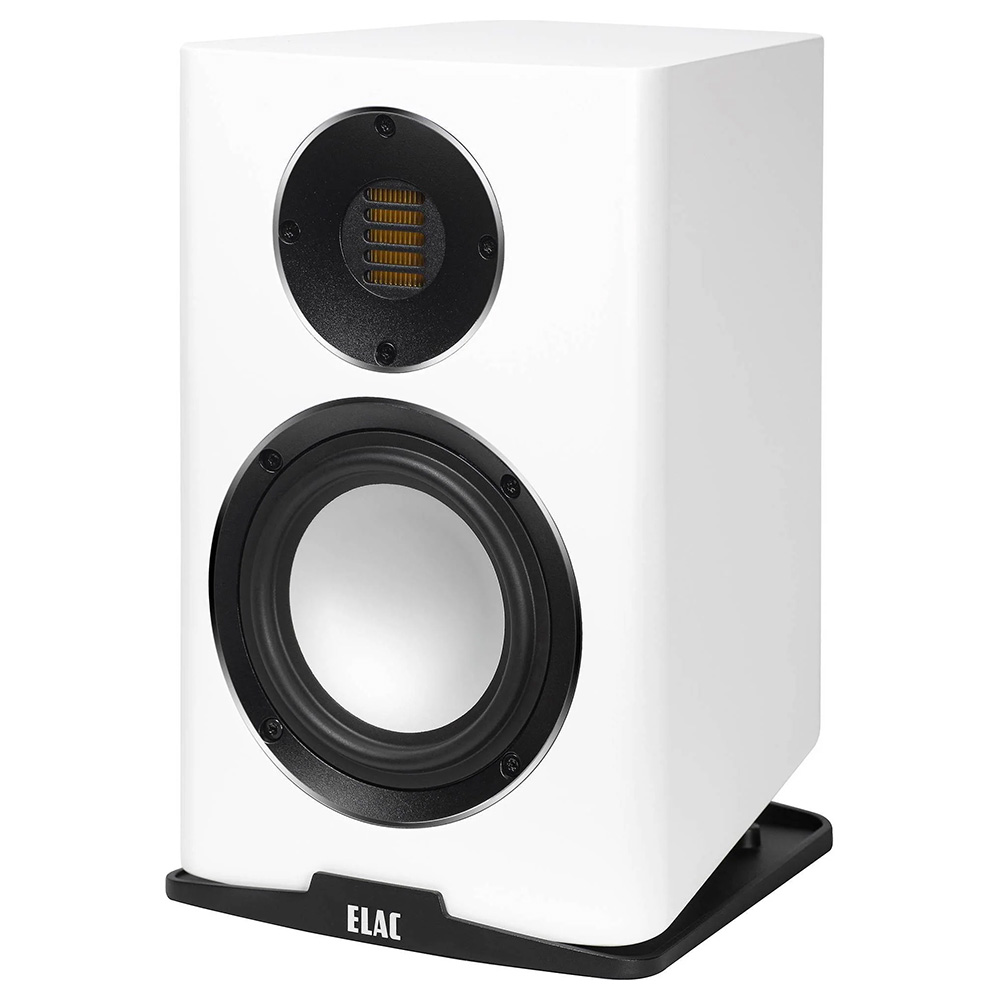

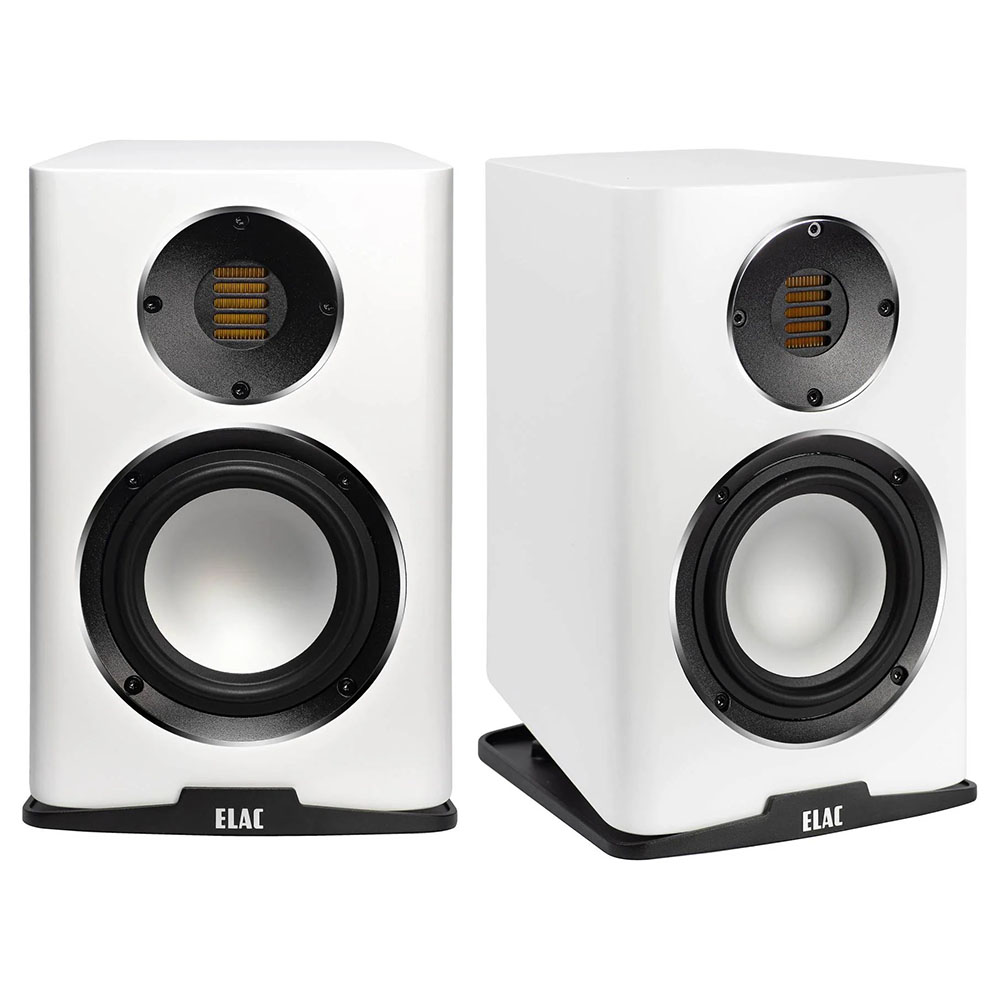

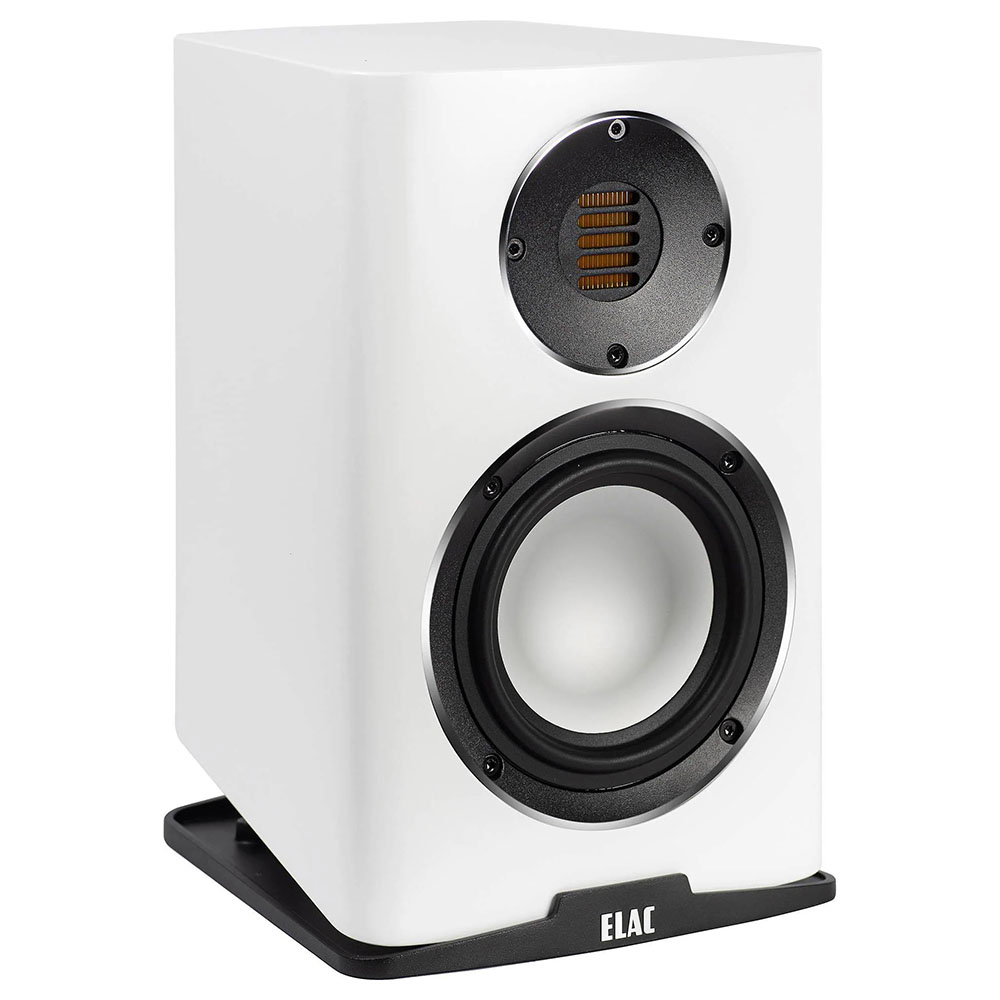

The ELAC Carina BS 243.4 combines a high-performance JET Air Motion Transformer tweeter and a compound-curvature aluminum woofer. Compact yet powerful, it delivers rich, detailed sound with low noise and flexible placement thanks to its downward-firing port.

Elegant Design and Acoustic Excellence

MDF cabinet with internal bracing and satin finish. Convex baffle reduces reflections, while the double-flanged port provides silent and effective bass response.

Features

• JET Tweeter: Fast, detailed sound with wide frequency response and minimal distortion.
• Aluminum Woofer: Compound Curvature cone for enhanced stiffness and dynamic performance.
• Downward‑Firing Port: Reduces vent noise and provides placement flexibility.
• Internal Bracing: Structural ribs minimize cabinet resonance.

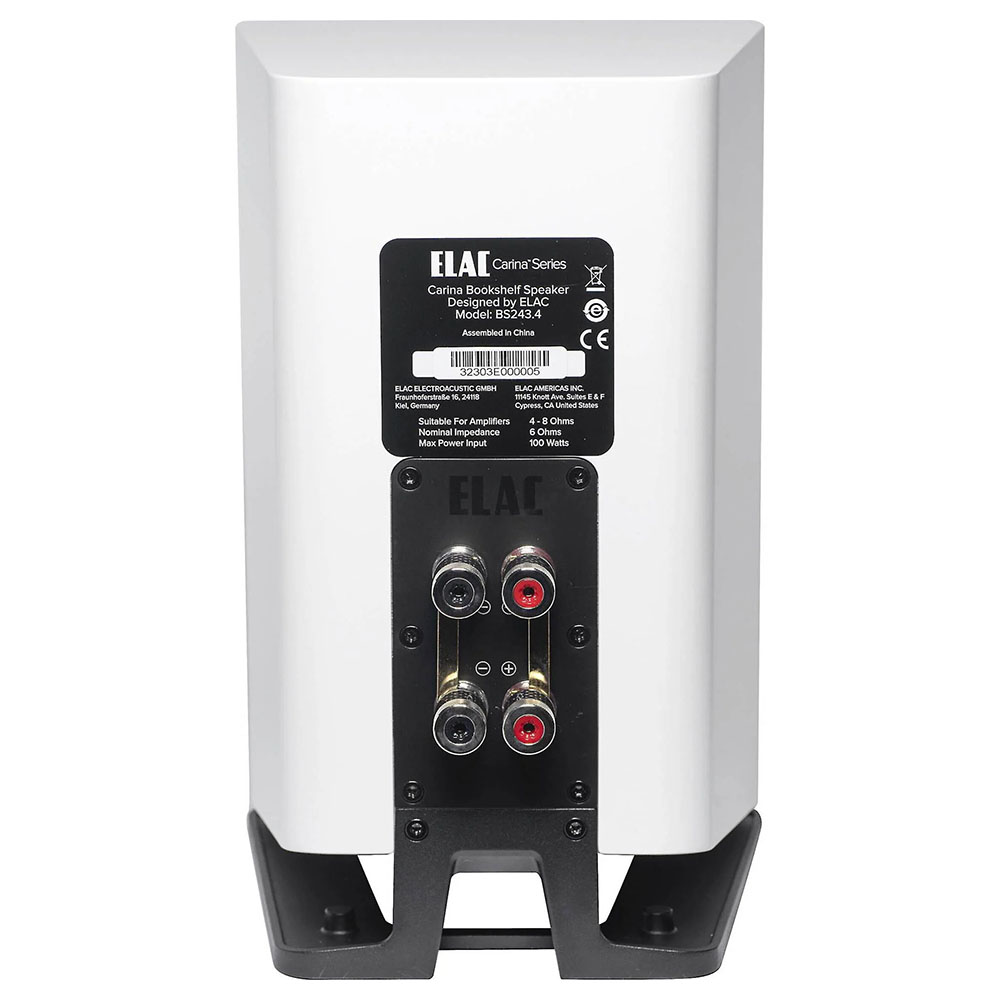

• Bi‑Wiring Capability: Supports separate bass and tweeter wiring for clearer sound.
• Die-Cast Bottom Plate: Integrated double-flanged port for superior bass performance.

What’s in the Box?

• ELAC Carina BS 243.4 Speakers
• Decorative feet/pads
• User Manual

Technical Information

• Type: 2‑way Vented box
• Woofer: 1 × 5‑1/4” Aluminum cone
• Tweeter: JET folded ribbon
• Crossover frequency: 2.7 kHz
• Frequency range: 46 Hz – 30 kHz
• Sensitivity: 85 dB/2.83 V/1 m
• Recommended amplifier power: 30 – 150 Wpc
• Peak power handling: 100 W
• Nominal / Minimum impedance: 6 Ω / 4.8 Ω
• Finishes: Satin Black, Satin White
• Net Weight (each): 14.73 lbs / 6.7 kg
• Dimensions (HxWxD): 319 × 216 × 245 mm
